What Should I Do?

Use of Light: Part I

Understanding emergencies and flashlight best practices
Monday, July 29, 2013, 8:27 PM

As humans, we’re extremely visual creatures, and our reliance on our eyesight is one of the defining characteristics of the human experience. We define beauty, horror, entertainment, and boredom largely by visual stimulus. We are appealed to and motivated by our visual input, and perhaps most importantly, we base how we move almost entirely by sight, whether on legs, wheels, water, or in the air.

Vision is the sense that we prefer the most, and it is arguably the most validating of all our senses.

The dark is one of the first things young humans take issue with, and it has been the subject of innumerable horror stories. The helplessness we feel in the dark gradually fades as we get older and grow more confident that there’s nothing lurking just a half-step behind us. While the focus of this article isn’t the spooky, unexplained, or supernatural, there are plenty of threats held by the dark; their domain is the night, and during times of disaster and emergency.

The purpose of this article is twofold:

  1. To identify the situations in which we will need to provide light for safety

  2. To give basic instructions on how to use light to your advantage without jeopardizing yourself

Light and the Human Eye

The human uses rods and cones to detect the strength and the color wavelength, so in order to be visible, an object must either radiate energy itself (such as the sun, a fire, or a flashlight), or reflect particles – the size of these particles reflect certain wavelengths, which define color.

For the purposes of this article, we’re going to define how light is cast and measured using three terms that are generally used to describe flashlights:

  1. Throw: The distance that the light generated will travel and reflect off distant particles.

  2. Splash: The degree in which the beam will broaden over the thrown distance.

  3. Lumen: A a measure of the light emitted and interpreted by the eye. Most basic flashlights are around 60 lumens, which is generally the threshold at which you can temporarily blind someone.

Most ambient lights have very little throw but generate ‘splash’ lighting, which is gentle and not obnoxious. Flashlights – especially of the variety used by soldiers and police officers – are intended to generate more “throw,” which can be overpowering to the eye.

It’s important to mention that *both* types of lighting can be detected from a great distance away at night.  While the curve of the earth prohibits us from viewing much beyond ~3 miles (i.e., the distance at which the curve of the earth begins to obscure distant objects), scientists have suggested that the human eye would be able to see a candle at as far as 30 miles. This makes sense, as on a clear night, you can look up and view galaxies that are literally trillions of miles away.

But, enough “gee whiz”; let’s get back to what this means to us.

Meet the Lights

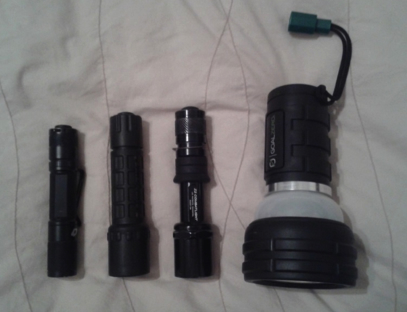

The lights I’ll be using for this article are:

1. 4Sevens QT2L
2. Surefire G2 (stock)
3. Surefire Z2 Centurion with Malkoff M61L Lamp
4. GoalZero Chubby


For the purpose of the article, it’s important to mention that all my lights have been upgraded using Oveready.com’s 17670 batteries, which offer a dramatically improved battery life over standard CR123 batteries and, perhaps most importantly, are fully rechargeable. I recharge these batteries from alternate, sustainable energy and am comforted by the knowledge that in an emergency, I’ll be able to recharge my lights, rather than be forced to find, stock, or trade for batteries.

40 Lumens, Ambient, 1 meter distance:

This is with a ‘lantern flashlight’, a GoalZero Chubby, which produces 40 lumens of lighting. In this picture, the lantern is 3’ from the target. You can see that the light is not producing a directional corona. This light is entirely ‘splash’ lighting – that is to say, it’s not ‘directional’ – and it radiates ‘evenly’ outward from the light source.

60 Lumens, Directional, 1 meter distance:

This picture depicts a 60 lumen Surefire Z2 from the same distance, 3 feet. You can see that there is a corona around the “thrown” light that covers the head and neck, and then “splashed” light on the wall behind the target. At this distance, the light is bright enough that it is difficult to make out the face of the target – on the receiving end, it is overwhelming.

However, by increasing the distance, we will see different results. It’s important to note that at this distance, your chances of an altercation are high, and being able to focus a light and its effective use will be dramatically diminished.

60 Lumens, Directional, 3 meters:

Here we see the same light (Surefire Z2) from a range of 3 meters, or 9 feet. The “splash” characteristics have almost entirely gone, and we see that this light is very directional. At 60 lumens, it doesn’t radiate outward far enough to cause much, if any, illumination on the periphery of the beam.

To illustrate the splash effect, try to identify the things you ‘see’ in the background. Keep them in mind, and let’s press on.

240 Lumens, Splash/Throw lamp, 1 meter distance:

This picture was taken is using 4Sevens QuarkQT2L flashlight.

As you can see here, the background is bathed in light – this is a much higher intensity lamp that is designed to have throw (again, note the corona) and splash. You can start to make out objects in the background a little more clearly

The light is still washing out the target’s face, and this is a very punishing light if you are on the receiving end, but again, it’s important to avoid getting this close to someone you suspect may be up to no good.

240 Lumens, Splash/Throw lamp, 3 meter distance:

As you can see, this light has splash lighting that allows you to discern other things within your foveal (forward looking) vision. The beam has broadened to the entire torso, and the corona extends beyond the target – this is still very hard on the eyes from the receiving end – and notice that the features are still washed out. Compare the background to the 60 lumen picture, and you’ll notice you can see more clearly what is in the background an important feature when you’re scanning in the dark.

Note on high-lumen lamps:
At this point, the impressive performance of the higher output lamps might make you think Why would I get a lower lumen lamp?

Keep in mind that these high-output devices will have a much greater signature and will make you visible to others from farther away. If your concern is not security, then higher output can also burn through your batteries faster, as well as heat up. You’ll have to balance your needs with performance, battery life, and desired use.

Lights as a weapon

Lights can be used as a weapon in two ways: It can be used to interrupt an attacker’s visual acuity and overload their vision with high intensity light, and/or be employed as an impact weapon (which means exactly what it sounds like – thump their gourd with it). However, one must take into account the purpose, durability, and suitability of their light to perform these tasks. If you’re walking around with a solar or hand powered flash light, chances are that if you hit something with it, the broken plastic will hurt you worse than anyone else. On the other end of the spectrum, there are things like this...

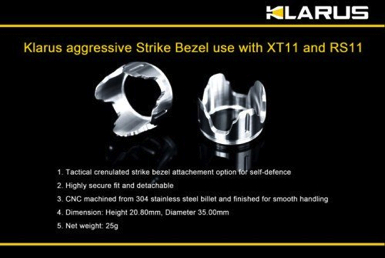

,,,which effectively turns your flashlight into a very small shark, which you can attach to your arm, but crenelated bezels (the spiky ones, for people who’re not into gear) can also be painful to carry. For this reason, I don’t use them, as I pocket-carry or use a small pouch for my EDC light, and I want both my pockets and pouch to last.

In addition, the effects of the lamp itself can be very disorienting. The strobe feature further adds disorientation to the temporarily blinding effects of stronger lights by continuously hammering the target with alternating light and darkness, which confuses the transmission of the molecule “rhodopsin” between the rods, which allow the rods of the eye to detect ambient light in dark conditions, and the cones.  When the molecule breaks into retinol and opsin in light conditions, the cones of the eye take over. If the light is quickly turned out, the retinol and opsin are forced to recombine in the rods (since the cones are responsible for color vision and visual acuity) into rhodopsin, which allows the rods to detect the intensity of light.

This is what accounts for the “night blindness” that occurs temporarily once a light is turned out. Strobe disrupts this process, and has been shown by Ken Good to cause spatial disorientation and loss of balance in use of force situations (all credit for this to Mr. Good, and Strategos Int’l).

Concerns

Light in an emergency is an obvious conundrum. It allows you to see, but it also telegraphs a signature to anyone in the area and is (generally) readily identifiable as a man-made source of illumination. This may not be a concern (or it may even be a benefit), so we’re going to talk about two “base” scenarios in which we could find ourselves and in which we would use drastically different procedures.

SITUATION 1: Maximum Signature

In this type of situation, we are not in the least concerned with trying to keep our lighting to a minimum. That is to say, situations in which you are expecting extraction or rescue, or in which being noticed is a good thing. Situations in this category may be something as simple as a car accident at night, or as complex as a collapsed building after an earthquake. In these events, the light you make is produced to be a signal to anyone who may be nearby and able to help, and the only reason to keep your light use to a minimum is to conserve your batteries.

SITUATION 2: Low Signature

These are the situations in which demonstrating that you have the ability to create light would target you in some way. Perhaps as simple as a power outage during a very tense, resource-scarce situation (such as Superstorm Sandy), or maybe something more serious, such as awakening to a break-i,n or entering a building that potentially has an active shooter or other hostile parties inside.

In these situations, light signals your presence and orients the *wrong* kind of people to your ‘making the scene’. Since Situation 1 requires no special considerations, we will focus the next article on Low Signature light use, and break it down into categories that are more manageable, tactical, and security considerations.

Please join me as we continue to Use of Light, Part II, in which we will cover: grip and posture when using lights, using lights in tactical (Type I/II Emergencies) and strategic (Type III) Emergency scenarios, and using lights with weapons.

Cheers,

~ Aaron Moyer

Special thanks to:
Mark Jones (ACPS: http://www.acpsllc.com/)
Ken Good (Strategos International: http://www.strategosintl.com/)
Overready.com, and Joshua Astrella

Endorsed Financial Adviser Endorsed Financial Adviser

Looking for a financial adviser who sees the world through a similar lens as we do? Free consultation available.

Learn More »
Read Our New Book "Prosper!"Read Our New Book

Prosper! is a "how to" guide for living well no matter what the future brings.

Learn More »



Related content

6 Comments

Poet's picture
Poet
Status: Diamond Member (Offline)
Joined: Jan 21 2009
Posts: 1891
Great Intro Into Light Use!

Excellent introduction. It really is a classic case of a tool that can be used for advantage, but which also has a disadvantage in that it can draw unwanted attention.

For everyone else: ever notice how a cop holds a MagLite?

In the non-dominant hand, grip near the head (and where the on-off button is), light source positioned above the shoulder, usually held aloft a foot or two away from the wielder's body...

Very different from how most civilians hold it.

Poet



A. M.'s picture
A. M.
Status: Diamond Member (Offline)
Joined: Oct 22 2008
Posts: 2368
Expansion

Poet,

Thank you for the response and I'm glad you enjoyed the article! The next in the series is going to be a feature on the techniques you've mentioned - I'm going to highlight the various "holds", as well as the "how" to use tactical lighting - techniques for scanning and how to address threats.

This post is mainly on the use of handheld lights, but the unspoken elephant in the room is that we all really like the modern convenience of lighting. It might be, next to indoor plumbing, one of the things we take for granted the very most.

In addition to handheld lights like these for EDC, its important to remember to have good ambient lights. It's pretty hard to wash the dishes or relight a pilot with a handheld. The Petzl Headlamps are an excellent piece of gear, and I also like the Energizer "Hard Case", which can be clipped onto your shirt or backpack.

Kerosene and propane lanterns, likewise, make a good investment and can make life a lot easier in an emergency, but there's no substitute for having a good amount of candles on hand. In my GoalZero Article under the energy use segment, I mentioned the lights that came with that system. Those are also an insanely efficient way to keep your home lit during an outage.

There is very little enthusiasm around here for anything except gardens, gold and global warming, but I'll get another installment up soon to cover the use, now that we've covered some material regarding how the lights work.

Cheers!
Aaron

sand_puppy's picture
sand_puppy
Status: Diamond Member (Offline)
Joined: Apr 13 2011
Posts: 1884
Awesome Light Article Aaron!

I very much look forward to the next installment.

I appreciate your including the links to facilitate purchase of the items I get inspired about. :-)

And, which specific batteries and solar recharger do you find most helpful?

A. M.'s picture
A. M.
Status: Diamond Member (Offline)
Joined: Oct 22 2008
Posts: 2368
Recommendations

Hey Sand Puppy,
I'm very glad you liked it - I'm eager to get the next installment finished, because I'm hoping that this is the type of information that's practical and approachable.

If you're looking for the best all around "entry" light for EDC, I cannot recommend the 4Sevens Quark QT2L enough. It's not perfect - for reasons I'll get in to during the next installment -  but you're looking at a light that is going to give you ~2.5 hours @ 240 lumens, and comes with a strobe feature... it does everything I need it to, and does it well, in a small, light package.

The battery I'm using in all my lights is the AW17670 in conjunction with the UltraFire Battery Charger
So you know, the 17670 battery can be used in any light that takes two CR123 batteries (which are very common in duty lights).

I've yet to actually run one dead, but I throw my primary battery on to charge once a other month or so, to make sure they don't die on me.

Cheers!
Aaron

kevinoman0221's picture
kevinoman0221
Status: Silver Member (Offline)
Joined: Sep 25 2008
Posts: 144
Thanks Aaron

Good info!

A. M.'s picture
A. M.
Status: Diamond Member (Offline)
Joined: Oct 22 2008
Posts: 2368
Corrections, etc

Kevinoman0221,

Thanks! I'm glad you enjoyed it, and feel free to share your thoughts or comments.

Guys, I have a couple corrections:
1. The proper website is: Oveready.com (1 'r', not 2).
2. The UltraFire charger that I cited has been discontinued from the factory, and the ones on the market now are often clones that may be unsafe - thanks to Oveready (again) for the information.

Also, if there is anything you'd like to see in the next installation, now is the time to toss out questions, comments or concerns, I'll be working on it over the next couple weeks.

Cheers,

Aaron
